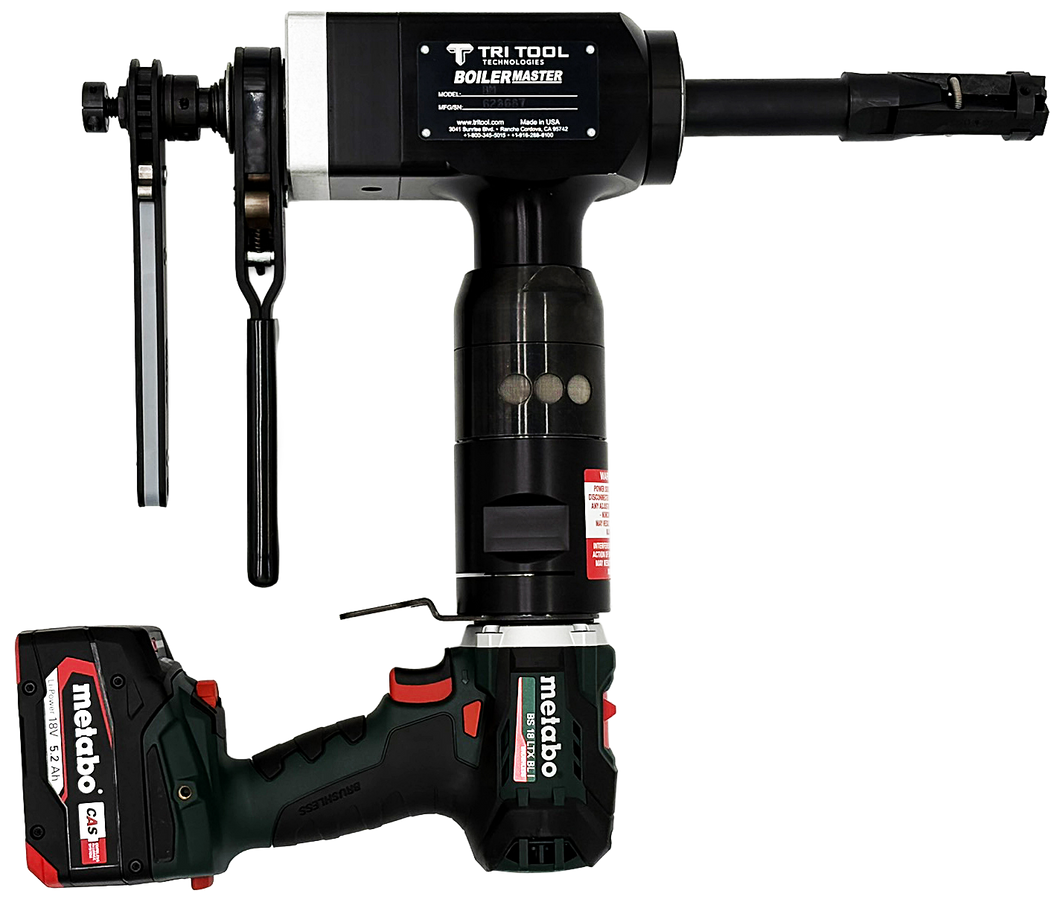

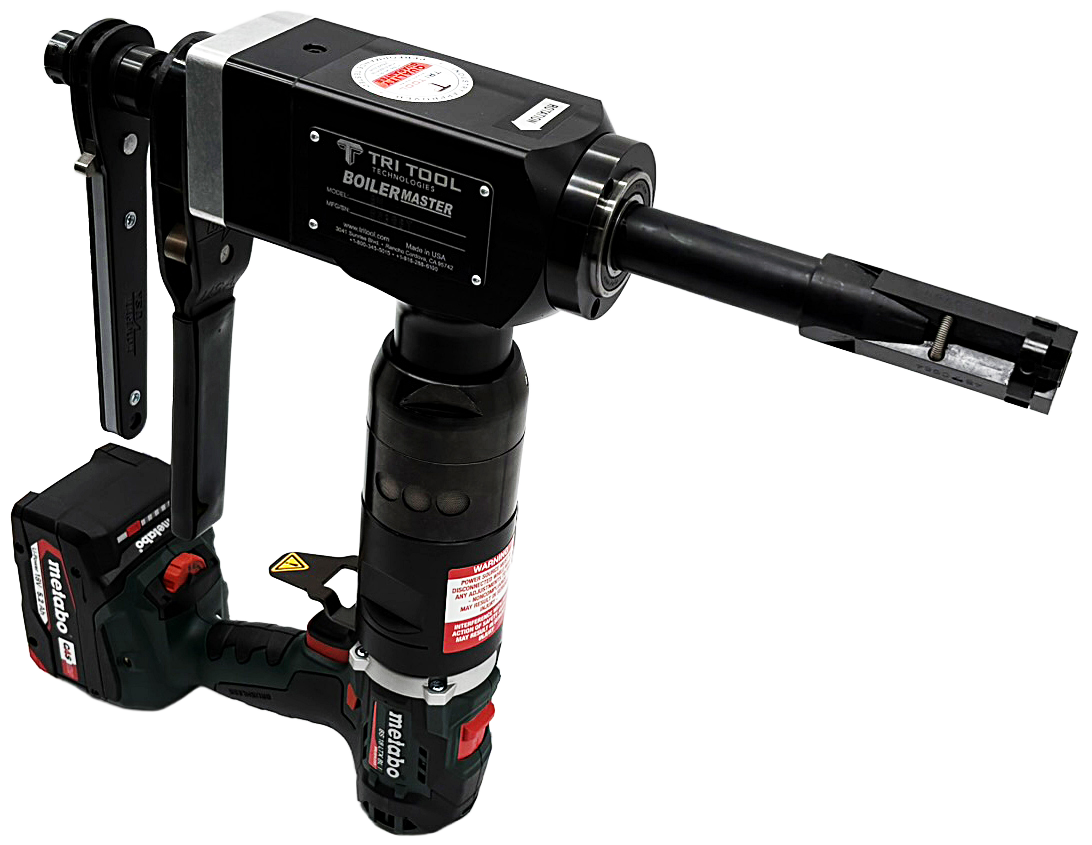

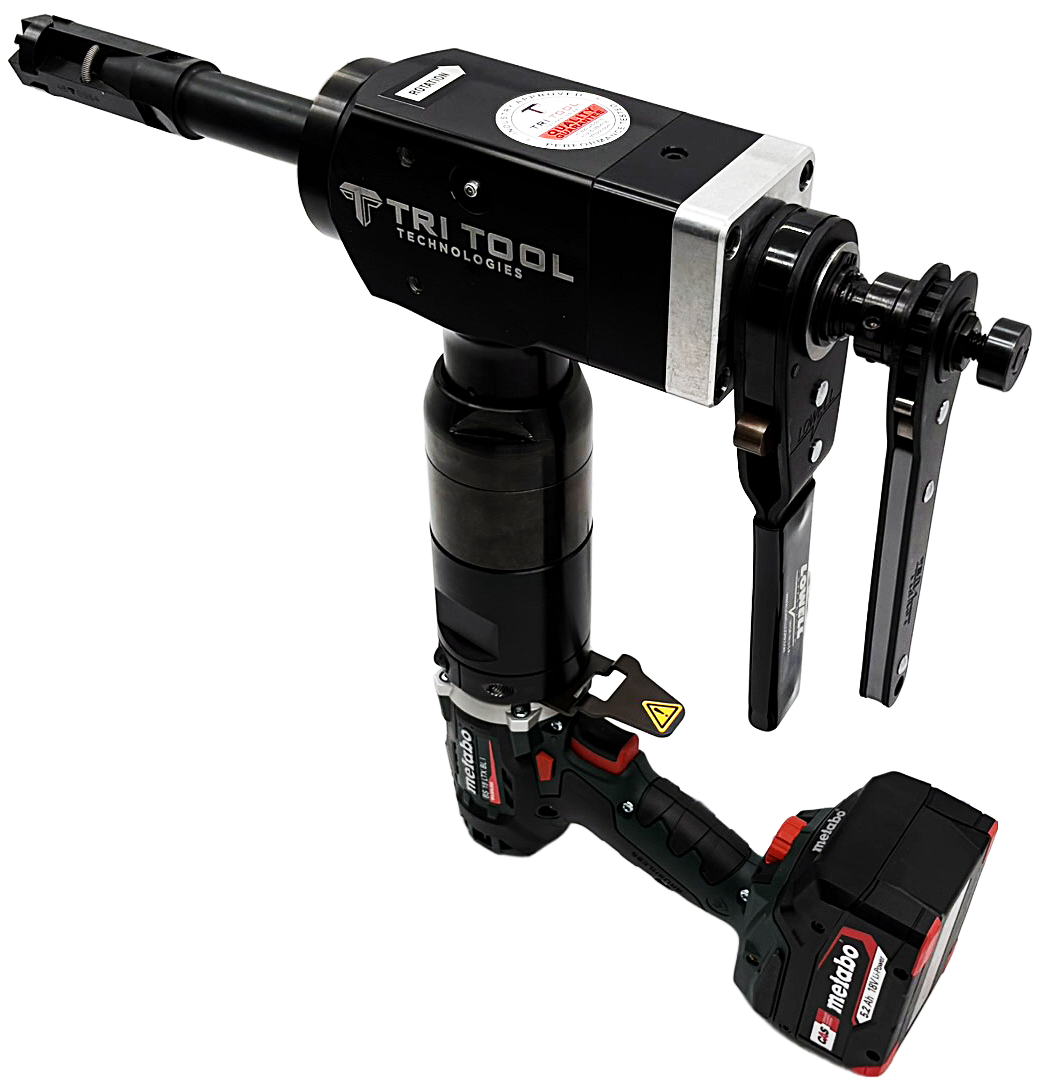

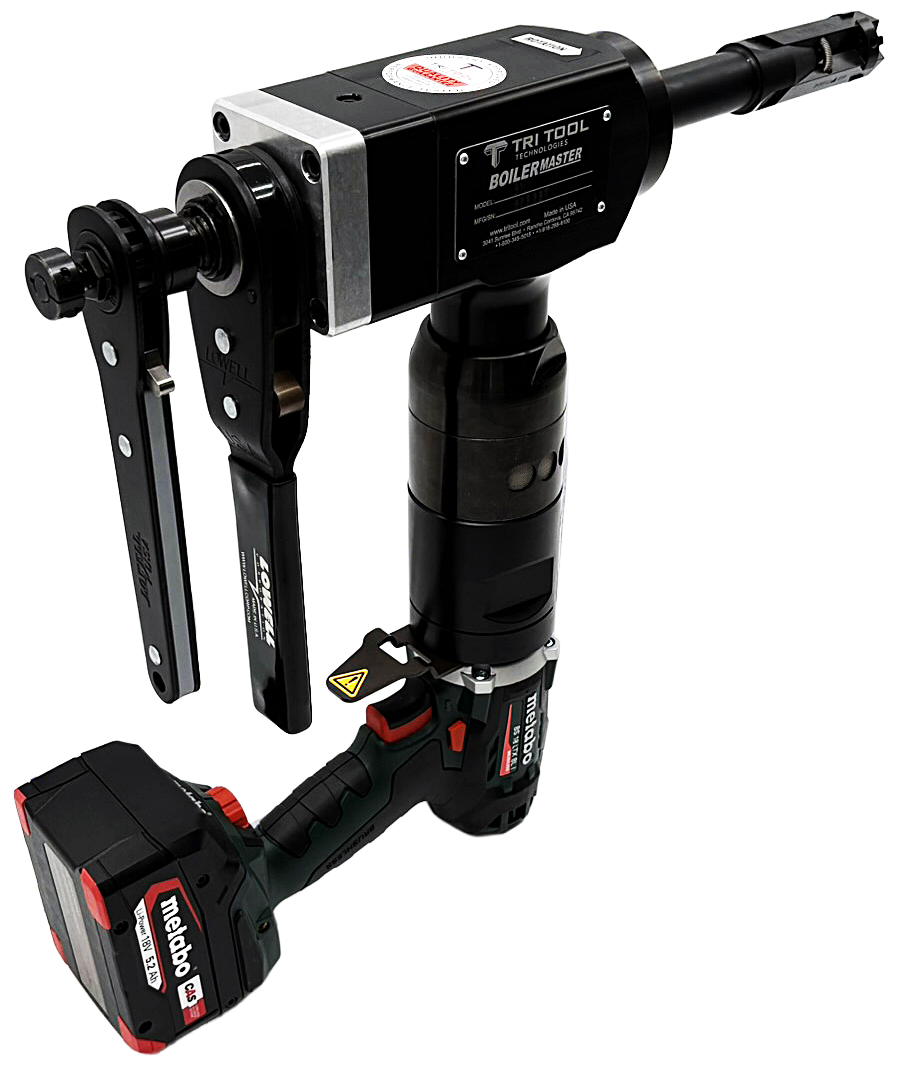

BoilerMaster DC

$7,780.00 USD
$7,780.00 USD
$6,480.00 USD
Sold out

Free economy shipping on orders over $500, online only

Specifically designed for boiler machining operations, the features a right-angle ratchet feed for working in confined spaces, a powerful cordless brushless DC motor, a compact cutting head which accepts standard and wedge-lock bits for heavy-duty use. The head is sealed to protect inner components and the solid milled body houses a heavy-duty gear set with tapered roller bearings for reliability. The tool steel mandrel and durable hardened steel mounting blocks provide maximum grip on water walls and boiler pipes making this machine the best choice for boiler construction and maintenance.

Includes: Machine, Mandrel, Jaw Blocks, 4.00" Wedgelock Head, Wrench Kit, Carrying Case, and Operating Manual.

For Facing operation: Purchase 99-5243 Facing tool bit

For 37.5° Beveling operation: Purchase Boilermaster1 Beveling tool bit

Pipe/Tube Size: *.610" - 4.500" (*15.5 mm - 114.3 mm)
Wall Thickness: **0.531" (13.5 mm) max
Drive Options: Cordless Brushless DC
Machine Package Includes:
  • BoilerMaster Sub. Assembly
  • Cordless DC Motor Assembly
  • Mandrel Assembly
  • Jaw Block Set
  • Wrench Kit
  • Carrying Case
  • Operators Manual

Technical Specifications

Property Inches Metric
ID Mounting:
Mandrel, Reduced Diameter (option)
Mandrel, Reduced Diameter (option)
Standard Mandrel		 *.610" - 1.000"
*1.000" - 1.250"
1.250" - 4.330" 		 *(15.5 mm - 25.4 mm)
*(25.4 mm - 31.8 mm)
(31.8 mm - 110.0 mm)
OD Machining (max):
2.625" Head
4.000" Head		 *2.625"
*4.500"		 *(66.8 mm)
*(114.3 mm)
Counterboring: 1.500" - 4.330" (38.1 mm - 110.2 mm)
ID Chamfering: 1.600" - 4.190" (40.6 mm - 106.4 mm)
Wall Thickness:
Air
Electric		 **.531"
**.250"		 **(13.5 mm)
**(6.4 mm)
Axial Feed Travel: 1.500" (38.1 mm)
Feed Rate: (Per Revolution) .100" (2.5 mm)
Weight:  18 lbs (8.1 kg)
Cutting Head Toolbit slots: 3
Rotating head diameter:
2.625" Head
4.000" Head		 *2.625"
*4.000"		 *(66.8 mm)
*(101.6 mm)
Height over motor: 19.880" (505.0 mm)
Machine Width: 4.000" (101.6 mm)
Length over machine: 16.420" (417.1 mm)
*With optional accessory included

**For larger wall thickness, contact Tri Tool Inc. for heavier wall procedures
